THE PETG HF
ADVANTAGE
Strategic airframe construction for high-performance UAVs. Optimized for thermal endurance and structural ductility.
01. THERMAL ENDURANCE
Handles up to 75°C–80°C. Prevents wing-drop and fuselage warping in extreme regional climates like India.
02. IMPACT DUCTILITY
Superior elongation at break. Airframes bend rather than shatter during hard landings, protecting critical avionics.
03. CHEMICAL SHIELD
Resistant to oils and lubricants. Future-proofed for hybrid gas-electric propulsion transitions.
SLICER OPTIMIZATION
WALL.INTEGRITY
Single wall (0.4mm) for main airframe. 3-4 walls for high-torque 2806.5 motor mounts.
LAYER.FUSION
Minimize cooling (20-30% fan) to ensure layers fuse into a single solid piece for structural UAV parts.
GYROID.INFILL
3-5% density. Maximum strength-to-weight ratio without top-surface pillowing.
STRUCTURAL.REINFORCEMENT
CARBON FIBER SPARS: PULTRUDED TUBES ARE MANDATORY TO PREVENT PERMANENT CREEP UNDER LOAD.
ADHESIVES: MEDIUM-INTERFACE CA + ACTIVATOR. 30-MIN EPOXY FOR MOTOR FIREWALLS.
EMI MITIGATION: KEEP GPS AND COMPANION COMPUTERS ISOLATED FROM ESC NOISE.
CERTIFIED.FILAMENTS
NUMAKERS PETG HF
High flow rate. Ideal for long-duration Indian regional builds.
ESUN PETG
Mechanical benchmark. Maximum layer adhesion and precision.
SUNLU PETG
Cost-efficient. Best for heavy-duty 600g+ structural builds.
MATERIAL.COMPARISON
| Feature | Your PETG HF Build | Standard LW-PLA / Foam |
|---|---|---|
| Airframe Weight | 350g (Optimized thin-wall) | ~350g - 450g |
| Max Service Temp | 80°C (Sun-proof) | 55°C (Warps in hot sun) |
| Material Behavior | Ductile (Absorbs impact) | Brittle (Shatters on impact) |
| Static Load Limit | 12.5kg | Usually < 5kg |
| Surface Finish | High-flow gloss (Low drag) | Matte/Porous (High drag) |

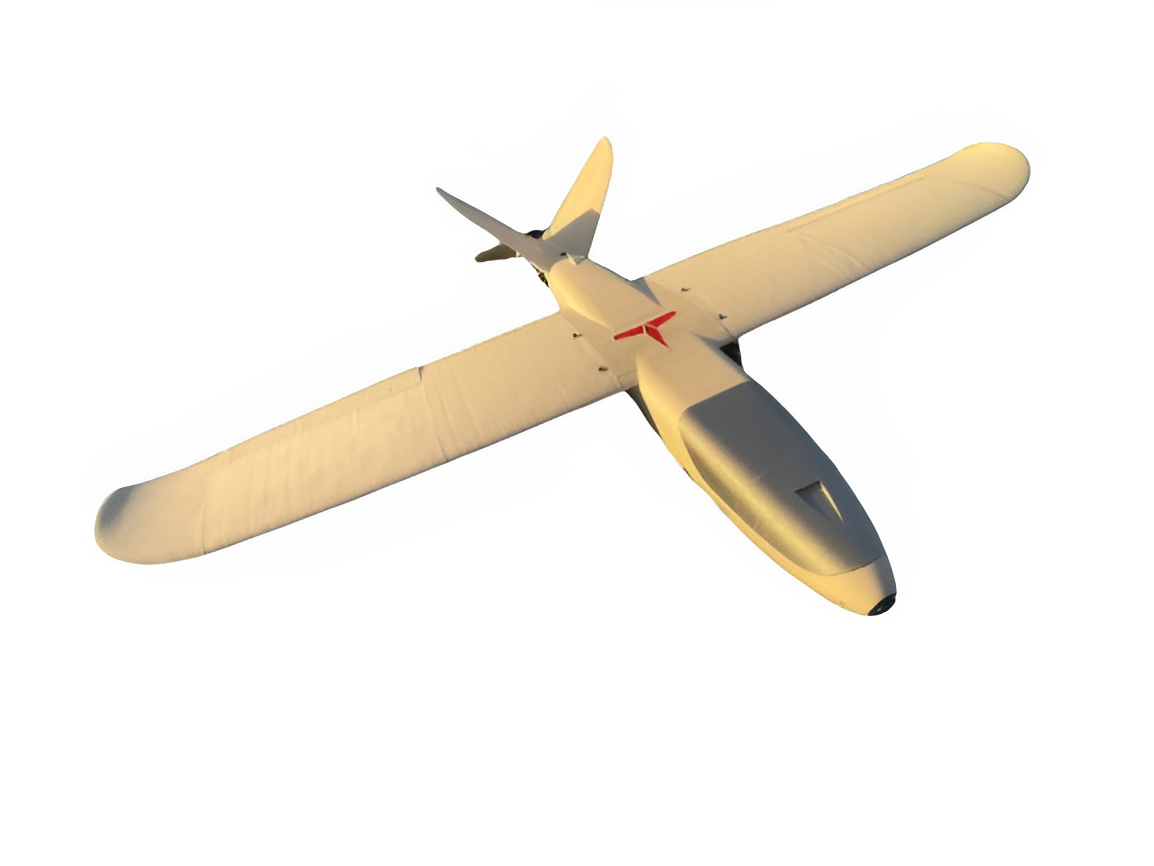

THE MICRO TALON
"EDGE-AI" EDITION
Precision Engineered. Thermally Hardened. Intelligence-Ready.
The first airframe specifically designed to bridge the gap between additive manufacturing speed and aerospace-grade endurance. Built for the operator who demands a 140km range without the fragility of foamed plastics.
01MATERIAL SCIENCE
// THERMAL ARMOR
While standard LW-PLA airframes "sun-sag" at 55°C, our PETG HF chassis is Thermally Hardened to 80°C. Built for high-noon operations.
// KINETIC RESILIENCE
Unlike brittle foam prints, our Impact-Ductile Geometry absorbs kinetic energy during high-stress field landings.
// STRUCTURAL DEFIANCE
Verified to withstand 12.5kg Static Load. Delivering a 35:1 Strength-to-Weight ratio on a 350g frame.
02PERFORMANCE
// HIGH-VELOCITY DASH
Capable of sustained 250+ km/h sprints (6S configuration). This isn't a cruiser; it's an interceptor.
// DEEP-STRIKE ENDURANCE
Optimized for 2+ hours of loiter time with integrated Li-Ion management, covering 140km missions.
// STOL MASTERY
The NACA 3410 airfoil + 2812 900KV powertrain enables Short Take-Off and Landing in unprepared terrain.
03THE AI CORE
// HARMONIC DAMPENING
The high-density PETG matrix acts as a Natural Harmonic Dampener—critical for jitter-free IMU/AI data.
// SURVEILLANCE OPTIMIZED
Dedicated volume for Edge-AI Compute (Jetson/Pi). Integrated air-induction cooling prevents thermal throttling.
// STEALTH ARCHITECTURE
Radio-transparent hull allows for internalized GNSS arrays, reducing drag and radar signature.
THE "VTOL-APEX"
CONFIGURATION
// HYBRID PROPULSION
4x 2806.5 1300KV lift units provide a 3.2 : 1 Thrust-to-Weight ratio. High-authority vertical control.
// ZERO-FOOTPRINT
No runway required. Transition from 1x1m launchpad to 90km/h cruise in under 10 seconds.
// REDUNDANT FAIL-SAFE
ArduPilot-driven "Quad-Chute" logic ensures the asset returns safely even during primary pusher motor failure.
TECHNICAL.DATASHEET.SUMMARY
| Feature | Professional Spec |
|---|---|
| Airframe Weight | 350g (Hyper-Optimized) |
| Operational Temp | -10°C to +80°C |
| Max G-Load | +6G / -3G (Verified) |
| Compute Payload | 1.4kg MTOW (AI-Ready) |
| Material Architecture | Advanced High-Flow PET-G |
AVAILABLE AIRFRAMES
// ORDER ON DEMAND
Micro Talon
INR 3499Compact and agile fixed-wing platform. Perfect for proximity flying and requirements.

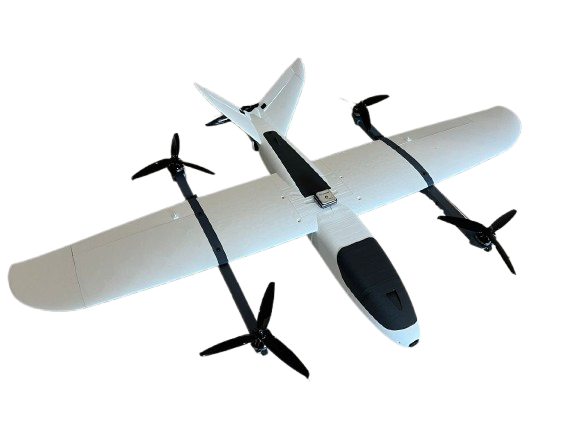

Micro Talon VTOL
INR 3999The VTOL variant of the Micro Talon. Combines the efficiency of a fixed-wing with the vertical takeoff convenience of a quadcopter.
For further query contact on whatsapp or email
